.NET Core 3 WPF MVVM框架 Prism系列之导航系统
- 作者: 阿林森
- 来源: 51数据库
- 2021-08-13
本文将介绍如何在.net core3环境下使用mvvm框架prism基于区域region的导航系统

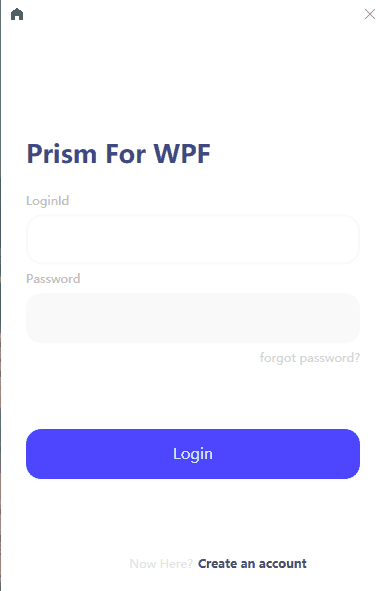

在讲解prism导航系统之前，我们先来看看一个例子,我在之前的demo项目创建一个登录界面：
我们看到这里是不是一开始想象到使用wpf带有的导航系统，通过frame和page进行页面跳转，然后通过导航日志的goback和goforward实现后退和前进，其实这是通过使用prism的导航框架实现的,下面我们来看看如何在prism的mvvm模式下实现该功能
一.区域导航
我们在上一篇介绍了prism的区域管理，而prism的导航系统也是基于区域的，首先我们来看看如何在区域导航
1.注册区域
loginwindow.xaml：
<window x:class="prismmetrosample.shell.views.login.loginwindow"
xmlns="http://www.51sjk.com/Upload/Articles/1/0/284/284978_20210711001105410.jpg
xmlns:x="http://www.51sjk.com/Upload/Articles/1/0/284/284978_20210711001105863.jpg
xmlns:d="http://www.51sjk.com/Upload/Articles/1/0/284/284978_20210711001105894.jpg
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:local="clr-namespace:prismmetrosample.shell.views.login"
xmlns:region="clr-namespace:prismmetrosample.infrastructure.constants;assembly=prismmetrosample.infrastructure"
mc:ignorable="d"
xmlns:prism="http://prismlibrary.com/"
xmlns:i="http://www.51sjk.com/Upload/Articles/1/0/284/284978_20210711001106863.jpg
height="600" width="400" prism:viewmodellocator.autowireviewmodel="true" resizemode="noresize" windowstartuplocation="centerscreen"
icon="pack://application:,,,/prismmetrosample.infrastructure;component/assets/photos/home, homepage, menu.png" >
<i:interaction.triggers>
<i:eventtrigger eventname="loaded">
<i:invokecommandaction command="{binding loginloadingcommand}"/>
</i:eventtrigger>
</i:interaction.triggers>
<grid>
<contentcontrol prism:regionmanager.regionname="{x:static region:regionnames.logincontentregion}" margin="5"/>
</grid>
</window>
2.注册导航
app.cs：
protected override void registertypes(icontainerregistry containerregistry)
{
containerregistry.register<imedicineserivce, medicineserivce>();
containerregistry.register<ipatientservice, patientservice>();
containerregistry.register<iuserservice, userservice>();
//注册全局命令
containerregistry.registersingleton<iapplicationcommands, applicationcommands>();
containerregistry.registerinstance<iflyoutservice>(container.resolve<flyoutservice>());
//注册导航
containerregistry.registerfornavigation<loginmaincontent>();
containerregistry.registerfornavigation<createaccount>();
}
3.区域导航
loginwindowviewmodel.cs：
public class loginwindowviewmodel:bindablebase
{
private readonly iregionmanager _regionmanager;
private readonly iuserservice _userservice;
private delegatecommand _loginloadingcommand;
public delegatecommand loginloadingcommand =>
_loginloadingcommand ?? (_loginloadingcommand = new delegatecommand(executeloginloadingcommand));
void executeloginloadingcommand()
{
//在logincontentregion区域导航到loginmaincontent
_regionmanager.requestnavigate(regionnames.logincontentregion, "loginmaincontent");
global.allusers = _userservice.getallusers();
}
public loginwindowviewmodel(iregionmanager regionmanager, iuserservice userservice)
{
_regionmanager = regionmanager;
_userservice = userservice;
}
}
loginmaincontentviewmodel.cs：
public class loginmaincontentviewmodel : bindablebase
{
private readonly iregionmanager _regionmanager;
private delegatecommand _createaccountcommand;
public delegatecommand createaccountcommand =>
_createaccountcommand ?? (_createaccountcommand = new delegatecommand(executecreateaccountcommand));
//导航到createaccount
void executecreateaccountcommand()
{
navigate("createaccount");
}
private void navigate(string navigatepath)
{
if (navigatepath != null)
_regionmanager.requestnavigate(regionnames.logincontentregion, navigatepath);
}
public loginmaincontentviewmodel(iregionmanager regionmanager)
{
_regionmanager = regionmanager;
}
}

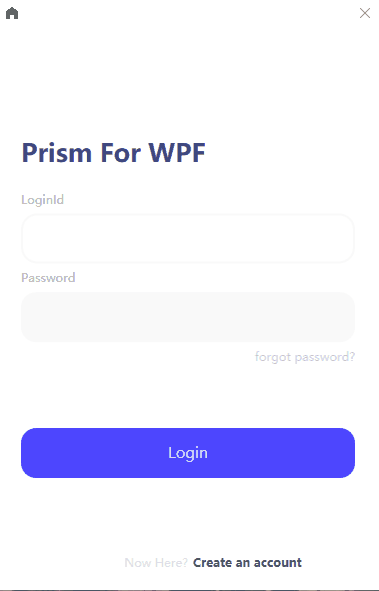

效果如下：
这里我们可以看到我们调用regionmannager的requestnavigate方法，其实这样看不能很好的说明是基于区域的做法，如果将换成下面的写法可能更好理解一点：
//在logincontentregion区域导航到loginmaincontent _regionmanager.requestnavigate(regionnames.logincontentregion, "loginmaincontent");
换成
//在logincontentregion区域导航到loginmaincontent
iregion region = _regionmanager.regions[regionnames.logincontentregion];
region.requestnavigate("loginmaincontent");
其实regionmannager的requestnavigate源码也是大概实现也是大概如此，就是去调region的requestnavigate的方法，而region的导航是实现了一个inavigateasync接口：
public interface inavigateasync
{
void requestnavigate(uri target, action<navigationresult> navigationcallback);
void requestnavigate(uri target, action<navigationresult> navigationcallback, navigationparameters navigationparameters);
}
我们可以看到有requestnavigate方法三个形参：
- target：表示将要导航的页面uri
- navigationcallback:导航后的回调方法
- navigationparameters:导航传递参数(下面会详解)
那么我们将上述加上回调方法：
//在logincontentregion区域导航到loginmaincontent
iregion region = _regionmanager.regions[regionnames.logincontentregion];
region.requestnavigate("loginmaincontent", navigationcompelted);
private void navigationcompelted(navigationresult result)
{
if (result.result==true)
{
messagebox.show("导航到loginmaincontent页面成功");
}
else
{
messagebox.show("导航到loginmaincontent页面失败");
}
}
效果如下：
二.view和viewmodel参与导航过程
1.inavigationaware
我们经常在两个页面之间导航需要处理一些逻辑，例如，loginmaincontent页面导航到createaccount页面时候，loginmaincontent退出页面的时刻要保存页面数据，导航到createaccount页面的时刻处理逻辑(例如获取从loginmaincontent页面的信息)，prism的导航系统通过一个inavigationaware接口：
public interface inavigationaware : object
{
void onnavigatedto(navigationcontext navigationcontext);
boolean isnavigationtarget(navigationcontext navigationcontext);
void onnavigatedfrom(navigationcontext navigationcontext);
}
- onnavigatedfrom：导航之前触发,一般用于保存该页面的数据
- onnavigatedto：导航后目的页面触发，一般用于初始化或者接受上页面的传递参数
- isnavigationtarget：true则重用该view实例，flase则每一次导航到该页面都会实例化一次
我们用代码来演示这三个方法：
loginmaincontentviewmodel.cs：
public class loginmaincontentviewmodel : bindablebase, inavigationaware
{
private readonly iregionmanager _regionmanager;
private delegatecommand _createaccountcommand;
public delegatecommand createaccountcommand =>
_createaccountcommand ?? (_createaccountcommand = new delegatecommand(executecreateaccountcommand));
void executecreateaccountcommand()
{
navigate("createaccount");
}
private void navigate(string navigatepath)
{
if (navigatepath != null)
_regionmanager.requestnavigate(regionnames.logincontentregion, navigatepath);
}
public loginmaincontentviewmodel(iregionmanager regionmanager)
{
_regionmanager = regionmanager;
}
public bool isnavigationtarget(navigationcontext navigationcontext)
{
return true;
}
public void onnavigatedfrom(navigationcontext navigationcontext)
{
messagebox.show("退出了loginmaincontent");
}
public void onnavigatedto(navigationcontext navigationcontext)
{
messagebox.show("从createaccount导航到loginmaincontent");
}
}
createaccountviewmodel.cs:
public class createaccountviewmodel : bindablebase,inavigationaware
{
private delegatecommand _loginmaincontentcommand;
public delegatecommand loginmaincontentcommand =>
_loginmaincontentcommand ?? (_loginmaincontentcommand = new delegatecommand(executeloginmaincontentcommand));
void executeloginmaincontentcommand()
{
navigate("loginmaincontent");
}
public createaccountviewmodel(iregionmanager regionmanager)
{
_regionmanager = regionmanager;
}
private void navigate(string navigatepath)
{
if (navigatepath != null)
_regionmanager.requestnavigate(regionnames.logincontentregion, navigatepath);
}
public bool isnavigationtarget(navigationcontext navigationcontext)
{
return true;
}
public void onnavigatedfrom(navigationcontext navigationcontext)
{
messagebox.show("退出了createaccount");
}
public void onnavigatedto(navigationcontext navigationcontext)
{
messagebox.show("从loginmaincontent导航到createaccount");
}
}

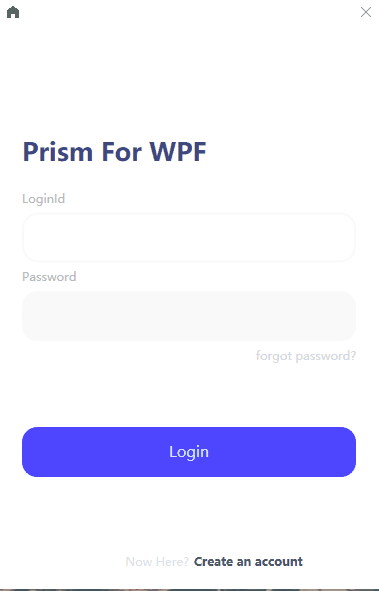

效果如下：
修改isnavigationtarget为false：
public class loginmaincontentviewmodel : bindablebase, inavigationaware
{
public bool isnavigationtarget(navigationcontext navigationcontext)
{
return false;
}
}
public class createaccountviewmodel : bindablebase,inavigationaware
{
public bool isnavigationtarget(navigationcontext navigationcontext)
{
return false;
}
}

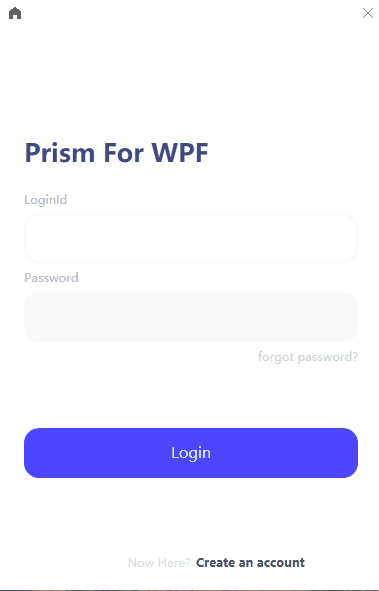

效果如下:
我们会发现loginmaincontent和createaccount页面的数据不见了，这是因为第二次导航到页面的时候当isnavigationtarget为false时，view将会重新实例化，导致viewmodel也重新加载,因此所有数据都清空了
2.iregionmemberlifetime
同时，prism还可以通过iregionmemberlifetime接口的keepalive布尔属性控制区域的视图的生命周期,我们在上一篇关于区域管理器说到，当视图添加到区域时候，像contentcontrol这种单独显示一个活动视图，可以通过region的activate和deactivate方法激活和失效视图，像itemscontrol这种可以同时显示多个活动视图的，可以通过region的add和remove方法控制增加活动视图和失效视图，而当视图的keepalive为false，region的activate另外一个视图时，则该视图的实例则会去除出区域，为什么我们不在区域管理器讲解该接口呢？因为当导航的时候，同样的是在触发了region的activate和deactivate，当有iregionmemberlifetime接口时则会触发region的add和remove方法，这里可以去看下prism的regionmemberlifetimebehavior源码
我们将loginmaincontentviewmodel实现iregionmemberlifetime接口，并且把keepalive设置为false，同样的将isnavigationtarget设置为true
loginmaincontentviewmodel.cs:
public class loginmaincontentviewmodel : bindablebase, inavigationaware，iregionmemberlifetime
{
public bool keepalive => false;
private readonly iregionmanager _regionmanager;
private delegatecommand _createaccountcommand;
public delegatecommand createaccountcommand =>
_createaccountcommand ?? (_createaccountcommand = new delegatecommand(executecreateaccountcommand));
void executecreateaccountcommand()
{
navigate("createaccount");
}
private void navigate(string navigatepath)
{
if (navigatepath != null)
_regionmanager.requestnavigate(regionnames.logincontentregion, navigatepath);
}
public loginmaincontentviewmodel(iregionmanager regionmanager)
{
_regionmanager = regionmanager;
}
public bool isnavigationtarget(navigationcontext navigationcontext)
{
return true;
}
public void onnavigatedfrom(navigationcontext navigationcontext)
{
messagebox.show("退出了loginmaincontent");
}
public void onnavigatedto(navigationcontext navigationcontext)
{
messagebox.show("从createaccount导航到loginmaincontent");
}
}
效果如下：
我们会发现跟没实现iregionmemberlifetime接口和isnavigationtarget设置为false情况一样，当keepalive为false时，通过断点知道，重新导航回loginmaincontent页面时不会触发isnavigationtarget方法，因此可以
知道判断顺序是：keepalive -->isnavigationtarget
3.iconfirmnavigationrequest
prism的导航系统还支持再导航前允许是否需要导航的交互需求，这里我们在createaccount注册完用户后寻问是否需要导航回loginmaincontent页面，代码如下：
createaccountviewmodel.cs:
public class createaccountviewmodel : bindablebase, inavigationaware，iconfirmnavigationrequest
{
private delegatecommand _loginmaincontentcommand;
public delegatecommand loginmaincontentcommand =>
_loginmaincontentcommand ?? (_loginmaincontentcommand = new delegatecommand(executeloginmaincontentcommand));
private delegatecommand<object> _veritycommand;
public delegatecommand<object> veritycommand =>
_veritycommand ?? (_veritycommand = new delegatecommand<object>(executeveritycommand));
void executeloginmaincontentcommand()
{
navigate("loginmaincontent");
}
public createaccountviewmodel(iregionmanager regionmanager)
{
_regionmanager = regionmanager;
}
private void navigate(string navigatepath)
{
if (navigatepath != null)
_regionmanager.requestnavigate(regionnames.logincontentregion, navigatepath);
}
public bool isnavigationtarget(navigationcontext navigationcontext)
{
return true;
}
public void onnavigatedfrom(navigationcontext navigationcontext)
{
messagebox.show("退出了createaccount");
}
public void onnavigatedto(navigationcontext navigationcontext)
{
messagebox.show("从loginmaincontent导航到createaccount");
}
//注册账号
void executeveritycommand(object parameter)
{
if (!verityregister(parameter))
{
return;
}
messagebox.show("注册成功!");
loginmaincontentcommand.execute();
}
//导航前询问
public void confirmnavigationrequest(navigationcontext navigationcontext, action<bool> continuationcallback)
{
var result = false;
if (messagebox.show("是否需要导航到loginmaincontent页面?", "naviagte?",messageboxbutton.yesno) ==messageboxresult.yes)
{
result = true;
}
continuationcallback(result);
}
}
效果如下：
三.导航期间传递参数
prism提供navigationparameters类以帮助指定和检索导航参数，在导航期间，可以通过访问以下方法来传递导航参数：
- inavigationaware接口的isnavigationtarget，onnavigatedfrom和onnavigatedto方法中isnavigationtarget，onnavigatedfrom和onnavigatedto中形参navigationcontext对象的navigationparameters属性
- iconfirmnavigationrequest接口的confirmnavigationrequest形参navigationcontext对象的navigationparameters属性
- 区域导航的inavigateasync接口的requestnavigate方法赋值给其形参navigationparameters
- 导航日志iregionnavigationjournal接口currententry属性的navigationparameters类型的parameters属性(下面会介绍导航日志)
这里我们createaccount页面注册完用户后询问是否需要用当前注册用户来作为登录loginid，来演示传递导航参数，代码如下：
createaccountviewmodel.cs(修改代码部分):
private string _registeredloginid;
public string registeredloginid
{
get { return _registeredloginid; }
set { setproperty(ref _registeredloginid, value); }
}
public bool isuserequest { get; set; }
void executeveritycommand(object parameter)
{
if (!verityregister(parameter))
{
return;
}
this.isuserequest = true;
messagebox.show("注册成功!");
loginmaincontentcommand.execute();
}
public void confirmnavigationrequest(navigationcontext navigationcontext, action<bool> continuationcallback)
{
if (!string.isnullorempty(registeredloginid) && this.isuserequest)
{
if (messagebox.show("是否需要用当前注册的用户登录?", "naviagte?", messageboxbutton.yesno) == messageboxresult.yes)
{
navigationcontext.parameters.add("loginid", registeredloginid);
}
}
continuationcallback(true);
}
loginmaincontentviewmodel.cs(修改代码部分):
public void onnavigatedto(navigationcontext navigationcontext)
{
messagebox.show("从createaccount导航到loginmaincontent");
var loginid= navigationcontext.parameters["loginid"] as string;
if (loginid!=null)
{
this.currentuser = new user() { loginid=loginid};
}
}
效果如下：
四.导航日志
prism导航系统同样的和wpf导航系统一样，都支持导航日志，prism是通过iregionnavigationjournal接口来提供区域导航日志功能，
public interface iregionnavigationjournal
{
bool cangoback { get; }
bool cangoforward { get; }
iregionnavigationjournalentry currententry {get;}
inavigateasync navigationtarget { get; set; }
void goback();
void goforward();
void recordnavigation(iregionnavigationjournalentry entry, bool persistinhistory);
void clear();
}
我们将在登录界面接入导航日志功能,代码如下:
loginmaincontent.xaml(前进箭头代码部分):
<textblock width="30" height="30" horizontalalignment="right" text="" fontweight="bold" fontfamily="pack://application:,,,/prismmetrosample.infrastructure;component/assets/fonts/#iconfont" fontsize="30" margin="10" visibility="{binding iscanexcute,converter={staticresource booltovisibilityconverter}}">
<i:interaction.triggers>
<i:eventtrigger eventname="mouseleftbuttondown">
<i:invokecommandaction command="{binding goforwardcommand}"/>
</i:eventtrigger>
</i:interaction.triggers>
<textblock.style>
<style targettype="textblock">
<style.triggers>
<trigger property="ismouseover" value="true">
<setter property="background" value="#f9f9f9"/>
</trigger>
</style.triggers>
</style>
</textblock.style>
</textblock>
booltovisibilityconverter.cs:
public class booltovisibilityconverter : ivalueconverter
{
public object convert(object value, type targettype, object parameter, cultureinfo culture)
{
if (value==null)
{
return dependencyproperty.unsetvalue;
}
var iscanexcute = (bool)value;
if (iscanexcute)
{
return visibility.visible;
}
else
{
return visibility.hidden;
}
}
public object convertback(object value, type targettype, object parameter, cultureinfo culture)
{
throw new notimplementedexception();
}
}
loginmaincontentviewmodel.cs(修改代码部分):
iregionnavigationjournal _journal;
private delegatecommand<passwordbox> _logincommand;
public delegatecommand<passwordbox> logincommand =>
_logincommand ?? (_logincommand = new delegatecommand<passwordbox>(executelogincommand, canexecutegoforwardcommand));
private delegatecommand _goforwardcommand;
public delegatecommand goforwardcommand =>
_goforwardcommand ?? (_goforwardcommand = new delegatecommand(executegoforwardcommand));
private void executegoforwardcommand()
{
_journal.goforward();
}
private bool canexecutegoforwardcommand(passwordbox passwordbox)
{
this.iscanexcute=_journal != null && _journal.cangoforward;
return true;
}
public void onnavigatedto(navigationcontext navigationcontext)
{
//messagebox.show("从createaccount导航到loginmaincontent");
_journal = navigationcontext.navigationservice.journal;
var loginid= navigationcontext.parameters["loginid"] as string;
if (loginid!=null)
{
this.currentuser = new user() { loginid=loginid};
}
logincommand.raisecanexecutechanged();
}
createaccountviewmodel.cs(修改代码部分):
iregionnavigationjournal _journal;
private delegatecommand _gobackcommand;
public delegatecommand gobackcommand =>
_gobackcommand ?? (_gobackcommand = new delegatecommand(executegobackcommand));
void executegobackcommand()
{
_journal.goback();
}
public void onnavigatedto(navigationcontext navigationcontext)
{
//messagebox.show("从loginmaincontent导航到createaccount");
_journal = navigationcontext.navigationservice.journal;
}
效果如下：
选择退出导航日志
如果不打算将页面在导航过程中不加入导航日志，例如loginmaincontent页面，可以通过实现ijournalaware并从persistinhistory（）返回false
public class loginmaincontentviewmodel : ijournalaware
{
public bool persistinhistory() => false;
}
五.小结：
prism的导航系统可以跟wpf导航并行使用，这是prism官方文档也支持的，因为prism的导航系统是基于区域的，不依赖于wpf，不过更推荐于单独使用prism的导航系统，因为在mvvm模式下更灵活，支持依赖注入,通过区域管理器能够更好的管理视图view,更能适应复杂应用程序需求，wpf导航系统不支持依赖注入模式，也依赖于frame元素，而且在导航过程中也是容易强依赖view部分，下一篇将会讲解prism的对话框服务
六.源码
?最后，附上整个demo的源代码：prismdemo源码
推荐阅读
