asp.net core 3.0中使用swagger的方法与问题

作者: 那晚越女说我?
来源: 51数据库
2021-09-04

intro#

上次更新了 asp.net core 3.0 简单的记录了一下 swagger 的使用，那个项目的 api 比较简单，都是匿名接口不涉及到认证以及 api 版本控制，最近把另外一个 api 项目升级到了 3.0，还是遇到了一些问题，这里单独写一篇文章介绍，避免踩坑。

swagger 基本使用#

swagger 服务注册：

services.addswaggergen(option =>
 {
 option.swaggerdoc("sparktodo", new openapiinfo
 {
  version = "v1",
  title = "sparktodo api",
  description = "api for sparktodo",
  contact = new openapicontact() { name = "weihanli", email = "weihanli@outlook.com" }
 });

 // include document file
 option.includexmlcomments(path.combine(appcontext.basedirectory, $"{typeof(startup).assembly.getname().name}.xml"), true);
 });

中间件配置：

//enable middleware to serve generated swagger as a json endpoint.
app.useswagger();
//enable middleware to serve swagger-ui (html, js, css etc.), specifying the swagger json endpoint
app.useswaggerui(option =>
{
 option.swaggerendpoint("/swagger/sparktodo/swagger.json", "sparktodo docs");

 option.routeprefix = string.empty;
 option.documenttitle = "sparktodo api";
});

为 swagger 添加 bearer token 认证#

services.addswaggergen(option =>
{
 // ...

 // add security definitions
 option.addsecuritydefinition("bearer", new openapisecurityscheme()
 {
 description = "please enter into field the word 'bearer' followed by a space and the jwt value",
 name = "authorization",
 in = parameterlocation.header,
 type = securityschemetype.apikey,
 });
 option.addsecurityrequirement(new openapisecurityrequirement
 {
 { new openapisecurityscheme
 {
  reference = new openapireference()
  {
  id = "bearer",
  type = referencetype.securityscheme
  }
 }, array.empty<string>() }
 });
});

支持多个 apiversion#

services.addapiversioning(options =>
 {
 options.assumedefaultversionwhenunspecified = true;
 options.defaultapiversion = apiversion.default;
 options.reportapiversions = true;
 });

services.addswaggergen(option =>
{
 // ...

 option.swaggerdoc("v1", new openapiinfo { version = "v1", title = "api v1" });
 option.swaggerdoc("v2", new openapiinfo { version = "v2", title = "api v2" });

 option.docinclusionpredicate((docname, apidesc) =>
 {
 var versions = apidesc.customattributes()
  .oftype<apiversionattribute>()
  .selectmany(attr => attr.versions);

 return versions.any(v => $"v{v.tostring()}" == docname);
 });

 option.operationfilter<removeversionparameteroperationfilter>();
 option.documentfilter<setversioninpathdocumentfilter>();
});

自定义 api version 相关的 operationfilter:

public class setversioninpathdocumentfilter : idocumentfilter
{
 public void apply(openapidocument swaggerdoc, documentfiltercontext context)
 {
 var updatedpaths = new openapipaths();

 foreach (var entry in swaggerdoc.paths)
 {
  updatedpaths.add(
  entry.key.replace("v{version}", swaggerdoc.info.version),
  entry.value);
 }

 swaggerdoc.paths = updatedpaths;
 }
}

public class removeversionparameteroperationfilter : ioperationfilter
{
 public void apply(openapioperation operation, operationfiltercontext context)
 {
 // remove version parameter from all operations
 var versionparameter = operation.parameters.single(p => p.name == "version");
 operation.parameters.remove(versionparameter);
 }
}

中间件配置：

//enable middleware to serve generated swagger as a json endpoint.
app.useswagger();
//enable middleware to serve swagger-ui (html, js, css etc.), specifying the swagger json endpoint
app.useswaggerui(option =>
{
 option.swaggerendpoint("/swagger/v2/swagger.json", "v2 docs");
 option.swaggerendpoint("/swagger/v1/swagger.json", "v1 docs");

 option.routeprefix = string.empty;
 option.documenttitle = "sparktodo api";
});

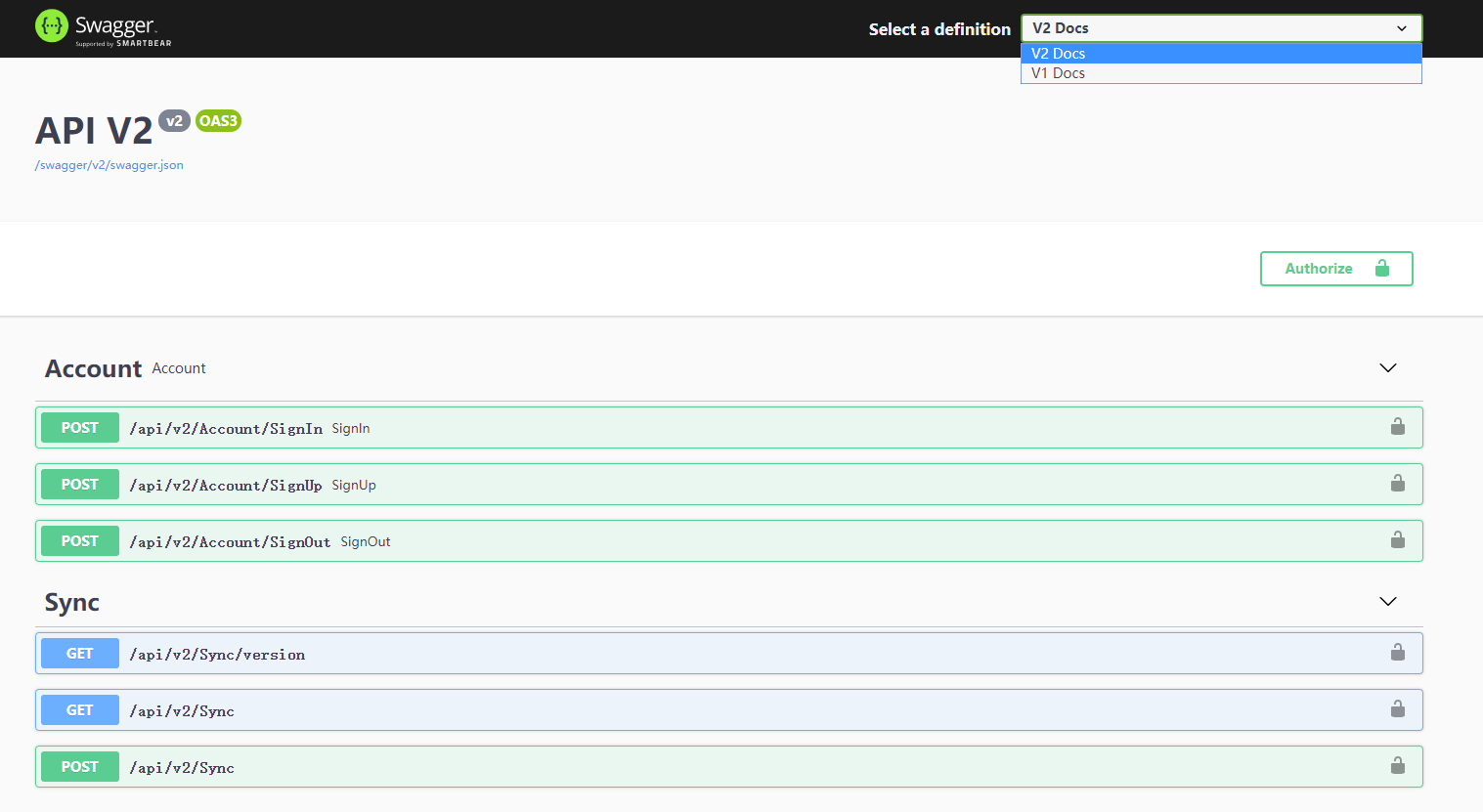

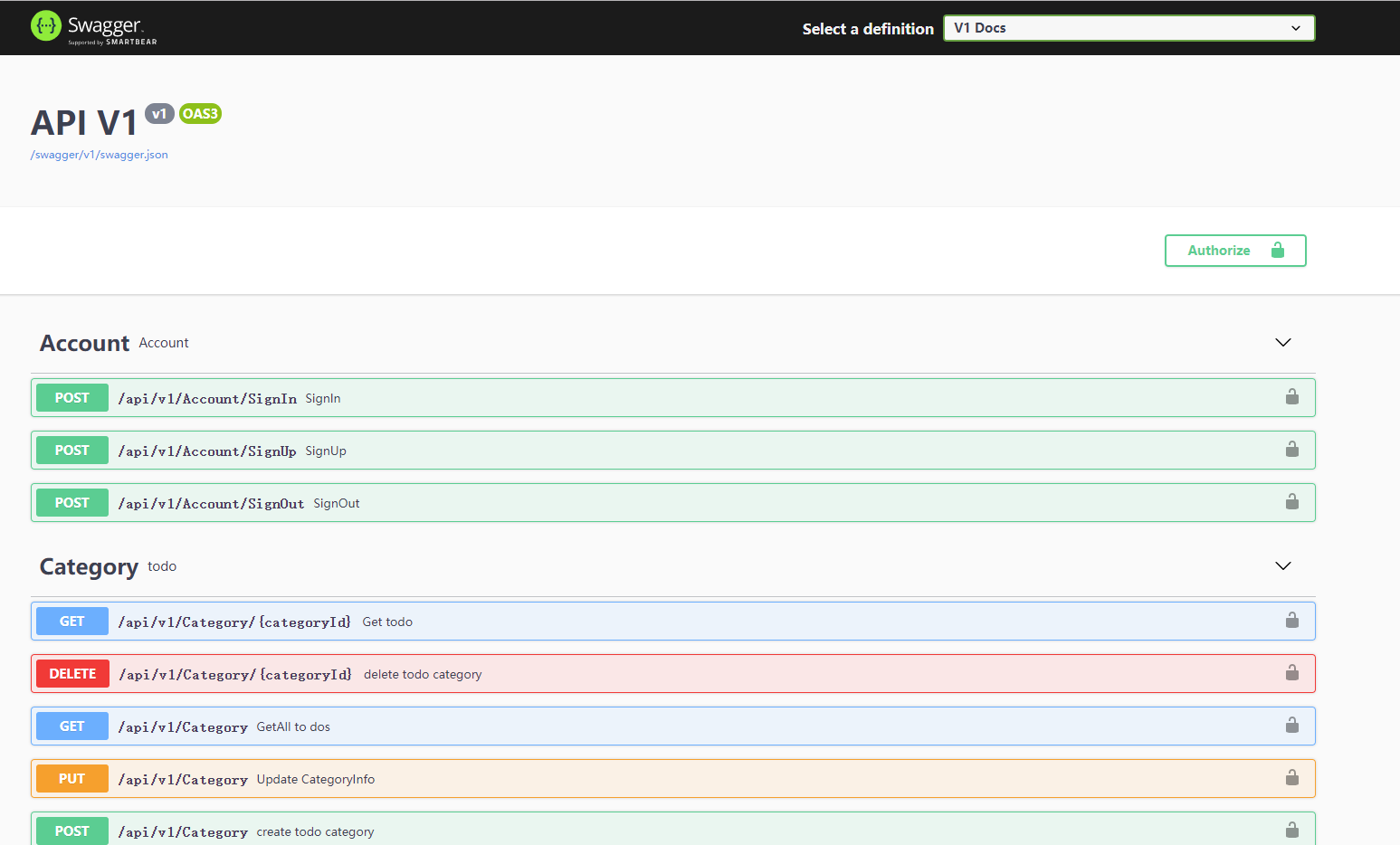

最终 swagger 效果

memo#

上面的配置来自 http://www.51sjk.com/Upload/Articles/1/0/288/288786_2021072810591730901.jpg 这个项目，要获取代码可以参考这个项目

reference#

https://github.com/domaindrivendev/swashbuckle.aspnetcore/tree/master/test/websites/multipleversions/swagger
https://stackoverflow.com/questions/58197244/swaggerui-with-netcore-3-0-bearer-token-authorization
https://github.com/domaindrivendev/swashbuckle.aspnetcore/issues/1295
http://www.51sjk.com/Upload/Articles/1/0/288/288786_2021072810591730901.jpg

总结

以上就是这篇文章的全部内容了，希望本文的内容对大家的学习或者工作具有一定的参考学习价值，谢谢大家对的支持。
