Alluxio的Raft HA实现

  • 作者: 醉恋蝶舞
  • 来源: 51数据库
  • 2021-09-05

文章目录

  • 前言
  • 基于Raft实现的要点
  • Alluxio Raft HA实现的相关角色类
  • Alluxio Raft HA部分场景分析
    • Leader重新选举监听处理
    • JournalStateMachine的状态apply处理
    • Raft HA过程调用
  • 参考资料

前言


Alluxio在HA的实现上,早期实现的方式是基于ZK(用来做领导选举)+shared journal storage(状态同步)的方式来达到其服务高可用性的,这种方式和HDFS的HA实现十分类似。不过后来Alluxio社区实现了基于Raft协议的新的HA实现方式,这里的Raft实现依赖了开源Raft Java实现库Apache Ratis。作为全新的HA实现,本文笔者结合Alluxio相关代码来简单聊聊里面的一些实现细节。

基于Raft实现的要点


Raft一致性协议算法目前逐渐被越来越多的大型系统所使用,比如对象存储系统Apache Ozone。Ozone内部的数据一致性控制依赖的实现也是Apache Ratis。

对于同样要依赖Apache Ratis做Raft HA实现的Alluxio系统来说,它需要特别关注哪几个要点的实现呢?这里笔者结合之前对于Ozone以及Apache Ratis的了解,列出以下几点:

  • StateMachine,状态机的定义,不同的系统它所谓的状态机的概念是不同的。比如以存储系统而言,大部分情况可理解为为master元数据的控制更新
  • Leader/Follower节点的选举,重新选举时的回调执行操作

以上两点是笔者认为做Raft实现需要尤其考虑实现的点,其它的部分我们再结合实际的系统实现做对应逻辑的适配修改。比如本文今天所讲述的这样的一个系统就是Alluxio。

Alluxio Raft HA实现的相关角色类


下面我们结合Alluxio的代码做Alluxio Raft HA实现的介绍。

首先一个主要的中心控制类RaftJournalSystem,此类里包括了状态机,raft journal writer等等与Raft journal HA实现的相关角色类。

RaftPrimarySelector, Primary选举监听类,当有新的leader选举时,此类会监听回调对应的执行执行。

RaftJournalWriter,Raft Journal信息的写出类。此类会调用Raft Client向其它master server组进行journal信息的写出。

JournalStateMachine,状态机的定义实现类,此类负责master状态的更新以及snapshot的定期take操作。

BufferedJournalApplier,负责apply journal信息到master的类。此类内部额外维护了一个suspend buffer队列,用类临时存放暂停时间段待apply的raft journal信息。

SnapshotReplicationManager,snapshot管理类,在Raft server中,Follower会进行snapshot的take并upload snapshot到Leader的Raft Server里。

Alluxio Raft HA部分场景分析


Leader重新选举监听处理


当发生了新的Leader选举时,Alluxio的master目前是怎么样的一个action操作?

首先我们来看与此相关的角色类,RaftPrimarySelector,代码如下:

/**
 * A primary selector backed by a Raft consensus cluster.
 */
@ThreadSafe
public class RaftPrimarySelector extends AbstractPrimarySelector {

  /**
   * Notifies leadership state changed.
   * @param state the leadership state
   */
  public void notifyStateChanged(State state) {
    setState(state);
  }

  @Override
  public void start(InetSocketAddress address) throws IOException {
    // The Ratis cluster is owned by the outer {@link RaftJournalSystem}.
  }

  @Override
  public void stop() throws IOException {
    // The Ratis cluster is owned by the outer {@link RaftJournalSystem}.
  }
}

此类基本继承父类的实现,只是对外方法里额外重置了一个状态。我们在基于ZK做Leader选举的时候,ZK是有提供对应接口监听得到新的Leader信息的。同理基于Raft实现的Apache Ratis同样有这么一个接口方法。

在JournalStateMachine的notifyLeaderChanged方法里,能监听到这个动作,随之会调用到RaftPrimarySelector#notifyStateChanged方法的执行,相关代码如下:

  @Override
  public void notifyLeaderChanged(RaftGroupMemberId groupMemberId, RaftPeerId raftPeerId) {
    if (mRaftGroupId == groupMemberId.getGroupId()) {
      mIsLeader = groupMemberId.getPeerId() == raftPeerId;
      mJournalSystem.notifyLeadershipStateChanged(mIsLeader);
    } else {
      LOG.warn("Received notification for unrecognized group {}, current group is {}",
          groupMemberId.getGroupId(), mRaftGroupId);
    }
  }

...

  /**
   * Notifies the journal that the leadership state has changed.
   * @param isLeader whether the local server is teh current leader
   */
  public void notifyLeadershipStateChanged(boolean isLeader) {
    mPrimarySelector.notifyStateChanged(
        isLeader ? PrimarySelector.State.PRIMARY : PrimarySelector.State.SECONDARY);
  }

PrimarySelector在setState操作里会调用之前注册过的listener方法,因此在每次master状态发生变化的时候,它会执行下面的操作方法(FaultTolerantAlluxioMasterProcess#gainPrimacy):

  private boolean gainPrimacy() throws Exception {
    // Don't upgrade if this master's primacy is unstable.
    AtomicBoolean unstable = new AtomicBoolean(false);
    try (Scoped scoped = mLeaderSelector.onStateChange(state -> unstable.set(true))) {
      // 判断当前角色是否是Primary
      if (mLeaderSelector.getState() != State.PRIMARY) {
        unstable.set(true);
      }
      stopMasters();
      LOG.info("Secondary stopped");
      try (Timer.Context ctx = MetricsSystem
          .timer(MetricKey.MASTER_JOURNAL_GAIN_PRIMACY_TIMER.getName()).time()) {
        // 先让journal system变为Primary的角色,此过程会有transaction的catch up操作
        mJournalSystem.gainPrimacy();
      }
      // 如果不是Primary服务,则再执行对应非Primary相关的执行操作,比如stop journal writer
      // 随后返回
      if (unstable.get()) {
        losePrimacy();
        return false;
      }
    }
    // 以Primary master身份启动master服务
    startMasters(true);
    mServingThread = new Thread(() -> {
      try {
        startServing(" (gained leadership)", " (lost leadership)");
      } catch (Throwable t) {
        Throwable root = Throwables.getRootCause(t);
        if ((root != null && (root instanceof InterruptedException)) || Thread.interrupted()) {
          return;
        }
        ProcessUtils.fatalError(LOG, t, "Exception thrown in main serving thread");
      }
    }, "MasterServingThread");
    mServingThread.start();
    if (!waitForReady(10 * Constants.MINUTE_MS)) {
      ThreadUtils.logAllThreads();
      throw new RuntimeException("Alluxio master failed to come up");
    }
    LOG.info("Primary started");
    return true;
  }

Journal system在变为Primary过程中,会进行关键的journal的catch up操作,保证其内部StateMachine apply了最新的journal transaction。

与此对应的(FaultTolerantAlluxioMasterProcess#)losePrimacy方法,发生在master监听发现自身已经不是Primary角色之后执行的。

  private void losePrimacy() throws Exception {
    if (mServingThread != null) {
      stopServing();
    }
    // Put the journal in secondary mode ASAP to avoid interfering with the new primary. This must
    // happen after stopServing because downgrading the journal system will reset master state,
    // which could cause NPEs for outstanding RPC threads. We need to first close all client
    // sockets in stopServing so that clients don't see NPEs.
    mJournalSystem.losePrimacy();
    if (mServingThread != null) {
      mServingThread.join(mServingThreadTimeoutMs);
      if (mServingThread.isAlive()) {
        ProcessUtils.fatalError(LOG,
            "Failed to stop serving thread after %dms. Serving thread stack trace:%n%s",
            mServingThreadTimeoutMs, ThreadUtils.formatStackTrace(mServingThread));
      }
      mServingThread = null;
      // 停止内部服务
      stopMasters();
      LOG.info("Primary stopped");
    }
    // 以非Primary角色重启内部服务
    startMasters(false);
    LOG.info("Secondary started");
  }

JournalStateMachine的状态apply处理


另外一块关键的处理是JournalStateMachine状态机的状态apply处理,关键操作方法如下:

JournalStateMachine#applyTransaction:

  @Override
  public CompletableFuture<Message> applyTransaction(TransactionContext trx) {
    try {
      applyJournalEntryCommand(trx);
      RaftProtos.LogEntryProto entry = Objects.requireNonNull(trx.getLogEntry());
      updateLastAppliedTermIndex(entry.getTerm(), entry.getIndex());
      // explicitly return empty future since no response message is expected by the journal writer
      // avoid using super.applyTransaction() since it will echo the message and add overhead
      return EMPTY_FUTURE;
    } catch (Exception e) {
      return RaftJournalUtils.completeExceptionally(e);
    }
  }

在上面的过程中,TransactionContext会被解析成具体的journal entry,然后apply到master state里去。

  private void applySingleEntry(JournalEntry entry) {
    ...

    mNextSequenceNumberToRead++;
    if (!mIgnoreApplys) {
      // journal applier(BufferedJournalApplier)类负责完成此步骤
      mJournalApplier.processJournalEntry(entry);
    }
  }

这里的master state有多种子类的实现,比如InodeTreePersistentState。

Raft HA过程调用

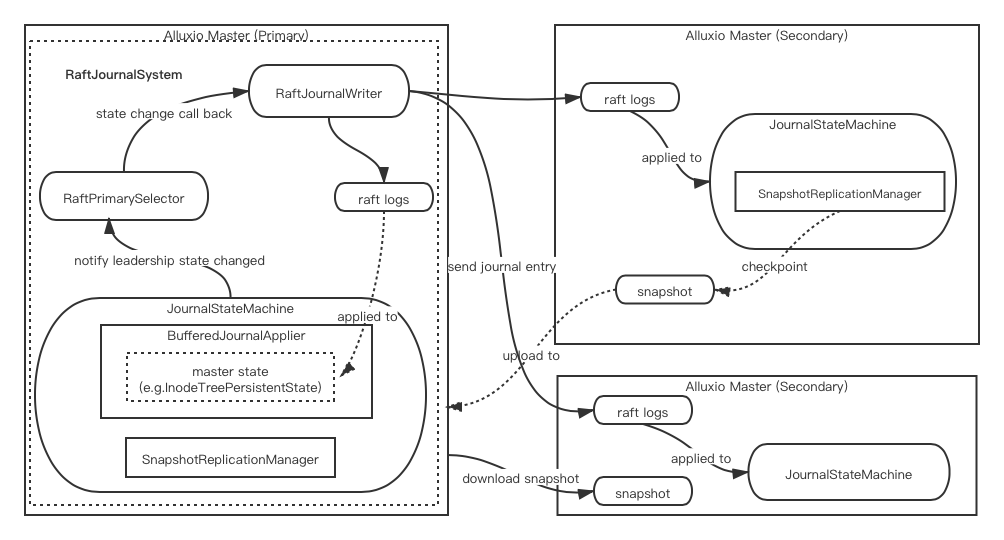

上面小节只展示了部分的Raft HA过程处理,一个全局的HA过程调用图如下所示,笔者列出了文中提到的几个关键角色服务在图内,并没有涵盖所有的细节。

以上就是本文所阐述的主要内容了,有兴趣的同学可以阅读学习Alluxio 其它方式的HA的实现细节。
