android里面的Activity体系结构(2)_Activity lifecycle实现原理说明

1.简介

ClientLifecycleManager是管理Activity lifecycle的，在ActivityTaskManagerService里面提供getLifecycleManager来获取此对象，其中mLifecycleManager是在ActivityTaskManagerService的构造方法里面初始化的

本文基于Android 10的源代码来分析说明

    ClientLifecycleManager getLifecycleManager() {
        return mLifecycleManager;
    }

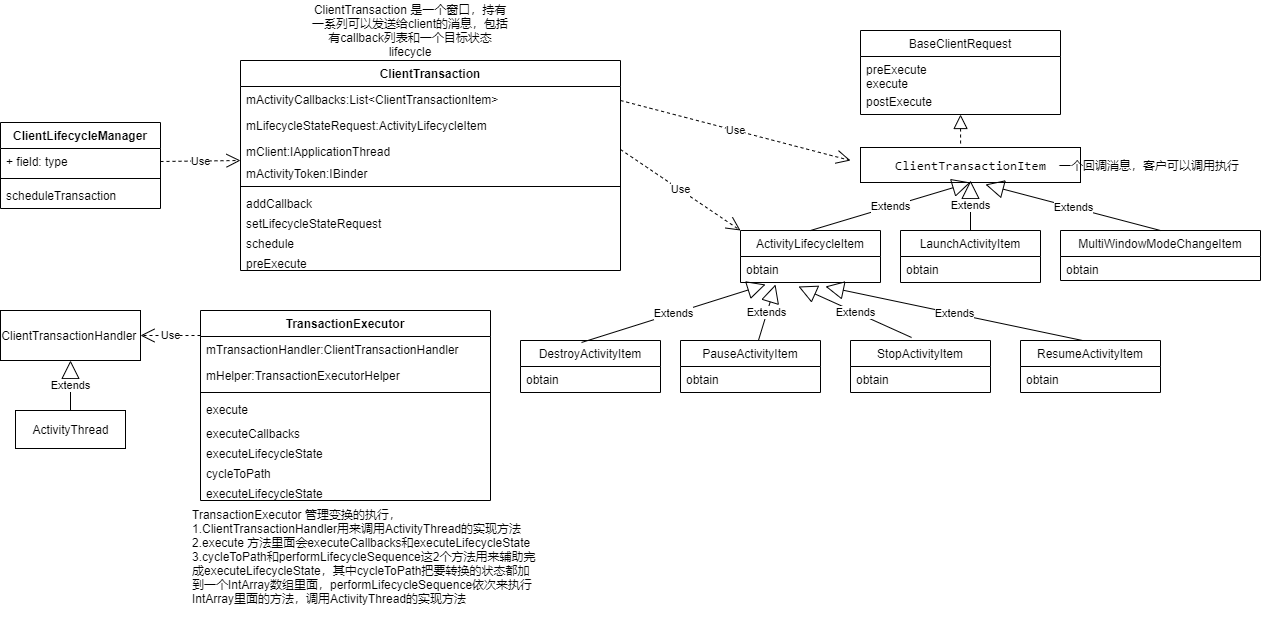

整体类图如下：

相关类功能说明：

1. ClientTransctionItem对象，一个回调消息，client端可以调用执行，实现了BaseClientRequest接口，在接口里面定义了3个方法，preExecute/execute/poseExecute方法
2. ActivityLifecycleItem继承自ClientTransctionItem，主要的子类有DestoryActivityItem、PauseActivityItem、StopActivityItem、ResumeActivityItem
3. ClientTransaction
   是一个容器，持有一系列可以发送给client的消息，包括有callback列表和一个目标状态lifecycle

    /** A list of individual callbacks to a client. */
    @UnsupportedAppUsage
    private List<ClientTransactionItem> mActivityCallbacks;

    /**
     * Final lifecycle state in which the client activity should be after the transaction is
     * executed.
     */
    private ActivityLifecycleItem mLifecycleStateRequest;

    /** Target client. */
    private IApplicationThread mClient;

    /** Target client activity. Might be null if the entire transaction is targeting an app. */
    private IBinder mActivityToken;

4. TransactionExecutor 管理变换的执行，

1.ClientTransactionHandler用来调用ActivityThread的实现方法
2.execute 方法里面会executeCallbacks和executeLifecycleState,
3.cycleToPath和performLifecycleSequence这2个方法用来辅助完成executeLifecycleState，其中cycleToPath把要转换的状态都加到一个IntArray数组里面，performLifecycleSequence依次来执行IntArray里面的方法，调用ActivityThread的实现方法

2.ClientLifecycleManager管理状态变化流程

从ClientTransaction的定义来看，变换主要有2种：mActivityCallbacks和mLifecycleStateRequest。

• startPausingLocked方法里面，只涉及到addCallback
• realStartActivityLocked里面涉及到mLifecycleStateRequest

以下以startPausingLocked和realStartActivityLocked的调用流程来说明

2.1 startPausingLocked

在startPausingLocked方法里面，只执行了callback方法

mService.getLifecycleManager().scheduleTransaction(prev.app.getThread(),
        prev.appToken, PauseActivityItem.obtain(prev.finishing, userLeaving,
               prev.configChangeFlags, pauseImmediately));

scheduleTransaction 传入的callcack对象是PauseActivityItem,通过obtain方法来获取，传入了ActivityThread和ActivityRecord.Token对象。

在ClientLifecycleManager类里面，定义了4个scheduleTransaction方法重载方法，最终都调用到如下方法，

    void scheduleTransaction(ClientTransaction transaction) throws RemoteException {
        final IApplicationThread client = transaction.getClient();
        transaction.schedule();
    }

继续调用ClientTransaction 的schedule方法,mClient是ActivityThread对象，ActivityThread未定义此方法，在其父类ClientTransactionHandler定义了此方法，通过handler机制，最终调用到了

   //ClientTransaction.java
    public void schedule() throws RemoteException {
        mClient.scheduleTransaction(this);
    }

    //ClientTransactionHandler.java
    void scheduleTransaction(ClientTransaction transaction) {
        transaction.preExecute(this); // 调用callback的preExecute方法
        sendMessage(ActivityThread.H.EXECUTE_TRANSACTION, transaction);
    }

    //ActivityThread.java
    case EXECUTE_TRANSACTION:
         final ClientTransaction transaction = (ClientTransaction) msg.obj;
         mTransactionExecutor.execute(transaction);

在前面有过介绍，TransactionExecutor 负责管理变换的执行，核心实现在这个里面

    public void execute(ClientTransaction transaction) {
        ...
        // 执行mActivityCallbacks里面的callcack
        executeCallbacks(transaction);
       // 执行mLifecycleStateRequest的变换,由于没有设置，此方法直接返回
        executeLifecycleState(transaction);
        mPendingActions.clear();
        if (DEBUG_RESOLVER) Slog.d(TAG, tId(transaction) + "End resolving transaction");
    }

    public void executeCallbacks(ClientTransaction transaction) {
        final List<ClientTransactionItem> callbacks = transaction.getCallbacks();

        for (int i = 0; i < size; ++i) {
            final ClientTransactionItem item = callbacks.get(i);
            // 执行callback的execute和postExecute方法
            item.execute(mTransactionHandler, token, mPendingActions);
            item.postExecute(mTransactionHandler, token, mPendingActions);
        }
    }

2.1 startPausingLocked

在realStartActivityLocked方法里面，同时添加了callback和目标lifecycle

                clientTransaction.addCallback(LaunchActivityItem.obtain(new Intent(r.intent),
                        System.identityHashCode(r), r.info,
                        // TODO: Have this take the merged configuration instead of separate global
                        // and override configs.
                        mergedConfiguration.getGlobalConfiguration(),
                        mergedConfiguration.getOverrideConfiguration(), r.compat,
                        r.launchedFromPackage, task.voiceInteractor, proc.getReportedProcState(),
                        r.icicle, r.persistentState, results, newIntents,
                        dc.isNextTransitionForward(), proc.createProfilerInfoIfNeeded(),
                                r.assistToken));

                // Set desired final state.
                final ActivityLifecycleItem lifecycleItem;
                if (andResume) { // 走的这个分支
                    lifecycleItem = ResumeActivityItem.obtain(dc.isNextTransitionForward());
                } else {
                    lifecycleItem = PauseActivityItem.obtain();
                }
                clientTransaction.setLifecycleStateRequest(lifecycleItem);

                // Schedule transaction.
                mService.getLifecycleManager().scheduleTransaction(clientTransaction);

前面的调用流程是一样的，LifecycleManager.scheduleTransaction ==> ClientTransaction.schedue ==> ClientTransactionHandler.scheduleTransaction ==> TransactionExecutor.execute

    public void execute(ClientTransaction transaction) {
        ...
        // 执行mActivityCallbacks里面的callcack
        executeCallbacks(transaction);
       // 执行mLifecycleStateRequest的变换
        executeLifecycleState(transaction);
        mPendingActions.clear();
        if (DEBUG_RESOLVER) Slog.d(TAG, tId(transaction) + "End resolving transaction");
    }

    public void executeCallbacks(ClientTransaction transaction) {
        final List<ClientTransactionItem> callbacks = transaction.getCallbacks();

        for (int i = 0; i < size; ++i) {
            final ClientTransactionItem item = callbacks.get(i);
            // 执行callback的execute和postExecute方法
            item.execute(mTransactionHandler, token, mPendingActions);
            item.postExecute(mTransactionHandler, token, mPendingActions);
        }
    }

    private void executeLifecycleState(ClientTransaction transaction) {
        // 获取 mLifecycleStateRequest
        final ActivityLifecycleItem lifecycleItem = transaction.getLifecycleStateRequest();
        //如果没有通过setLifecycleStateRequest设置，由直接返回
        if (lifecycleItem == null) {
            // No lifecycle request, return early.
            return;
        }

        // Cycle to the state right before the final requested state.
        cycleToPath(r, lifecycleItem.getTargetState(), true /* excludeLastState */, transaction);

        // Execute the final transition with proper parameters.
        lifecycleItem.execute(mTransactionHandler, token, mPendingActions);
        lifecycleItem.postExecute(mTransactionHandler, token, mPendingActions);
    }

    private void cycleToPath(ActivityClientRecord r, int finish, boolean excludeLastState,
            ClientTransaction transaction) {
        final int start = r.getLifecycleState();
        // 通过mHelper来获取LifecyclePath,此方法会根据start和finish状态来构造一个状态数组
        //  1. start状态是ON_CREATE：由于LaunchActivityItem会调用handleLaunchActivity方法将状态设置为ON_CREATE
        // r.setState(ON_CREATE);
        // 2. finish状态是ON_RESUME：在ResumeActivityItem里面，getTargetState直接返回的ON_RESUME
        final IntArray path = mHelper.getLifecyclePath(start, finish, excludeLastState);
        performLifecycleSequence(r, path, transaction);
    }

    // 根据不同的状态，调用ActivityThread的对应方法
    private void performLifecycleSequence(ActivityClientRecord r, IntArray path,
            ClientTransaction transaction) {
        final int size = path.size();
        for (int i = 0, state; i < size; i++) {
            state = path.get(i);
            switch (state) {
                case ON_CREATE:
                    mTransactionHandler.handleLaunchActivity(r, mPendingActions,
                            null /* customIntent */);
                    break;
                case ON_START:
                    mTransactionHandler.handleStartActivity(r, mPendingActions);
                    break;
                case ON_RESUME:
                    mTransactionHandler.handleResumeActivity(r.token, false /* finalStateRequest */,
                            r.isForward, "LIFECYCLER_RESUME_ACTIVITY");
                    break;
                case ON_PAUSE:
                    mTransactionHandler.handlePauseActivity(r.token, false /* finished */,
                            false /* userLeaving */, 0 /* configChanges */, mPendingActions,
                            "LIFECYCLER_PAUSE_ACTIVITY");
                    break;
                case ON_STOP:
                    mTransactionHandler.handleStopActivity(r.token, false /* show */,
                            0 /* configChanges */, mPendingActions, false /* finalStateRequest */,
                            "LIFECYCLER_STOP_ACTIVITY");
                    break;
                case ON_DESTROY:
                    mTransactionHandler.handleDestroyActivity(r.token, false /* finishing */,
                            0 /* configChanges */, false /* getNonConfigInstance */,
                            "performLifecycleSequence. cycling to:" + path.get(size - 1));
                    break;
                case ON_RESTART:
                    mTransactionHandler.performRestartActivity(r.token, false /* start */);
                    break;
                default:
                    throw new IllegalArgumentException("Unexpected lifecycle state: " + state);
            }
        }
    }

重点说明一下 cycleToPath方法

1. start状态是ON_CREATE：由于LaunchActivityItem会调用handleLaunchActivity方法将状态设置为ON_CREATE， r.setState(ON_CREATE);
2. finish状态是ON_RESUME：在ResumeActivityItem里面，getTargetState直接返回的ON_RESUME
3. 在TransactionExecutorHelper.getLifecyclePath方法里面，会依次加入ON_START和ON_RESUME

在execute方法里面

1. executeCallbacks 方法
   会调用LaunchActivityItem的execute方法来handleLaunchActivity，最终会调用Activity.onCreate
2. executeLifecycleState方法
   会依次调用handleStartActivity和handleResumeActivity，最终调用Activity.onStop和Acitivty.onResume
